Our Facilities

Where Precision Takes Shape

At SLN we belive the world-class infrastructure is the best way to begin quality product. This is the reason why our production facility is based on high-tech equipment, experienced specialists, and its firm adherence to the idea of providing engineering excellence.
The combination of technology and craftsmanship makes our site one of the best combinations of excellent technology and excellence in craftsmanship and precision, durability, and performance of every item manufactured in our facility.

  • Technology Meets Capability

    We have a balance of standard tools and the latest CNC systems, which were chosen carefully and are from high-regarded Japanese, Taiwanese, and Indian manufacturers. This setup allows us to handle a wide range of fabrication, machining, and assembly tasks in a single facility. Our teams and machines are prepared to meet your requirements, whether the work is high-volume production or custom complex work.

Key Machining Capabilities

We have several advanced CNC tools with which we have complete control over the precision, speed, and repeatability of the parts we manufacture. Some of the most powerful machines we have are:

Table Size: 1,600 × 760 mm
X / Y / Z Travel: 1,530 × 760 × 700 mm
Maximum Table Load: 1,300 kg
Spindle Speed: up to 8,000 rpm (High-torque)

Table Size: 1,500 × 670 mm
X / Y / Z Travel: 1,300 × 670 × 635 mm
Maximum Table Load: 1,300 kg
Spindle Speed: up to 8,000 rpm (high-torque)

Table Size: 1,300 × 550 mm
X / Y / Z Travel: 1,050 × 550 × 510 mm
 Maximum Table Load: 1,200 kg
Spindle Speed: up to 12,000 rpm

Laser Power: 2-6kW
Bed Size: 3.15 × 1.75 m
Max Thickness: Mild Steel 25 mm, Stainless
Steel 16 mm, Aluminum 12 mm

5-Axis CNC Control for complex bending operations
High Precision & Accuracy in sheet metal forming
Robust Build for heavy-duty

Advanced DELEM DA-53T CNC Controller with touch screen
 High bending accuracy & repeatability
Multi-axis CNC control for complex sheet metal forming
Energy-efficient hydraulic system
User-friendly interface for fast programming & setup
Backed by Trumpf Group technology for reliability and durability

Max Turning Diameter: 480 mm
 Max Turning Length: 1000 mm
High precision CNC control for complex turning operations
Rigid structure for stability and heavy-duty machining
 Ideal for shafts, automotive, and precision components

Bed Size: 3.2 × 1.75 m
Cutting Technology: Fiber Laser Cutting

High-precision wire cutting for complex profiles
CNC control system for automated machining
Capable of cutting hard materials (steel, carbide, alloys)
Smooth surface finish & tight tolerances
 Ideal for dies, molds, and precision engineering components

High-precision 3D measurement for complex components
Automated probe system for accurate inspection
Advanced software integration for data analysis & reporting
 Ideal for quality control, reverse engineering, and R&D
Renowned Mitutoyo reliability & accuracy

Special Processes (Outsourced, NADCAP/ Approved Sources):

  • All surface and heat treatments are performed by audited partners holding relevant Certifications / NADCAP approvals
  • LTAs/price contracts in place for capacity, price stability, and lead-time commitments
  • Processes supported: anodizing (Type II/III), passivation, chemical conversion coating, plating (as customer-approved), painting, powder coating, NDT; heat treatment (solution & aging, vacuum HT)
  • Quality package: CoC, NADCAP certificate copy on request, test reports, and full material/lot traceability

Precision Inspection and Quality Testing

We do not just manufacture parts; we check them. All products that we produce are packed tightly after being thoroughly tested using price sensitive apparatus.

CMM (Coordinate Measuring Machine)

Used to check the dimensions of intricate parts with high accuracy.

Precision Gauges & Instruments

To have in-process inspection and final inspection to be able to guarantee that all the client specifications are met by their parts.

In-House Fabrication & Welding Facility

In addition to machining, we also have a specialised sheet metal fabrication facility, i.e.,:

  • CNC cutting laser
  • Bending
  • MIG / TIG welding
  • Spot welding
  • Assembly

By managing fabrication and welding internally, we reduce delays and maintain better control over quality.

Designed for Efficiency and Scale

Whether it’s a small prototype or a production run in the thousands, our facility is designed to scale without compromising quality. We have optimised our floor layout, workflow, and team operations to deliver fast, reliable, and repeatable results.

  • High-speed set up of smaller runs.
  • Separate areas of materials handling, machining, welding and inspection
  • Waste reduction practice, lead, and improved productivity
  • Model: KF7600L
  • Table Size: 1,600 × 760 mm
  • X / Y / Z Travel: 1,530 × 760 × 700 mm
  • Maximum Table Load: 1,300 kg
  • Spindle Speed: up to 8,000 rpm (High-torque)

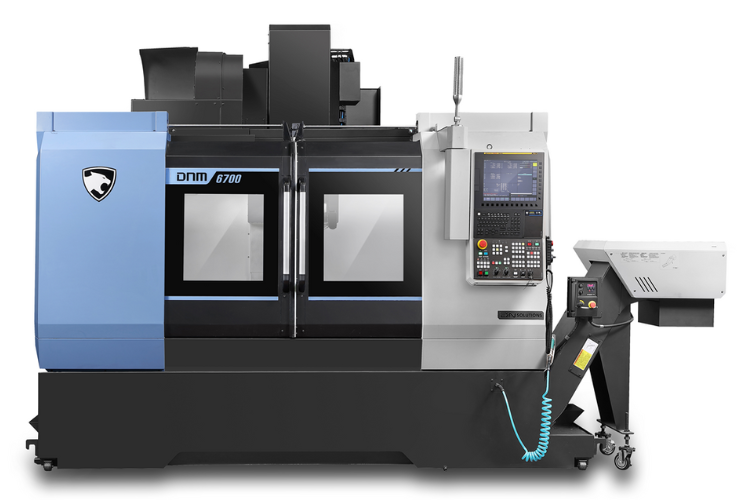

  • Model: DNM 6700L
    Table Size: 1,500 × 670 mm
  • X / Y / Z Travel: 1,300 × 670 × 635 mm
  • Maximum Table Load: 1,300 kg
  • Spindle Speed: up to 8,000 rpm (high-torque)
  •  Model: VC-EZ 510 IP
  • Table Size: 1,300 × 550 mm
  •  X / Y / Z Travel: 1,050 × 550 × 510 mm
  •  Maximum Table Load: 1,200 kg
  • Spindle Speed: up to 12,000 rpm
  • Make : JFY groups
  • Bed Size: 3.15 × 1.75 m
  • Laser Power: 2–6 kW
  • Max Thickness: Mild Steel 25 mm, Stainless
    Steel 16 mm, Aluminum 12 mm
  • Make: JFY Group
  • Bed Size: 3.2 × 1.75 m
  • Cutting Technology: Fiber Laser Cutting
  • YAWEI PB100 CNC 5-Axis Press Brake
  • 5-Axis CNC Control for complex
    bending operations
  • High Precision & Accuracy in sheet
    metal forming
  • Robust Build for heavy-duty
  • JFY (Trumpf Group) CNC Press Brake –
    DELEM DA-53T
  • Advanced DELEM DA-53T CNC
    Controller with touch screen
  •  High bending accuracy & repeatability
  • Multi-axis CNC control for complex
    sheet metal forming
  • Energy-efficient hydraulic system
  • User-friendly interface for fast
    programming & setup
  • Backed by Trumpf Group technology for
    reliability and durability

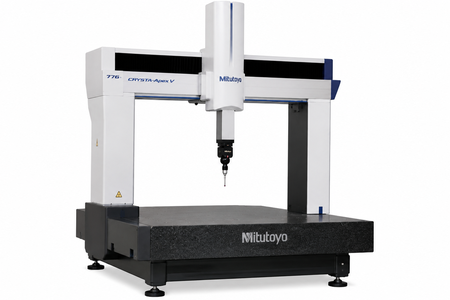

  • Mitutoyo Coordinate Measuring Machine
    (CMM)
  • High-precision 3D measurement for
    complex components
  • Automated probe system for accurate
    inspection
  • Advanced software integration for data
    analysis & reporting
  •  Ideal for quality control, reverse
    engineering, and R&D
  • Renowned Mitutoyo reliability &
    accuracy
  • Wire Cut EDM – DK7735 (Manorama Technologies)
  •  High-precision wire cutting for complex profiles
  • CNC control system for automated machining
  • Capable of cutting hard materials (steel,
    carbide, alloys)
  • Smooth surface finish & tight tolerances
  •  Ideal for dies, molds, and precision engineering
    components
  • Jyoti CNC Turning Machine – Model DX 250
  • Max Turning Diameter: 480 mm
  •  Max Turning Length: 1000 mm
  • High precision CNC control for complex turning
    operations
  • Rigid structure for stability and heavy-duty
    machining
  •  Ideal for shafts, automotive, and precision
    components

A Facility You Can Trust

At SLN Industries & Hitech Laser, our facility is more than just a workshop — it’s the heart of our operations and a key reason why customers trust us.
Whether you're looking for precision, speed, or reliability, we’re fully equipped to deliver
